Stainless Steel German Style Hose Clamp W2/W3/W4/W5

German Type Stainless Steel Hose Clamp Introduction

German type stainless steel hose clamps are also known as type A worm driven hose clamp. The brand code is Q675 in the automobile industry. This kind of stainless steel hose clamps are divided into 9 mm and 12 mm. One of the German type stainless steel hose clamp is hose clamp without welding, its advantage is no welding spot. It is good for protect the tube and plumb. The other type of stainless steel hose clamps have advantages of preventing the hose from being scratched. The steps at the bottom of the hoop head are also in palce. The band and the housing have a smooth transition, which is conducive to preventing the product from air leakage. So the German style stainless steel hose clamps are mostly used in industry, shipping, automobile and other industries.

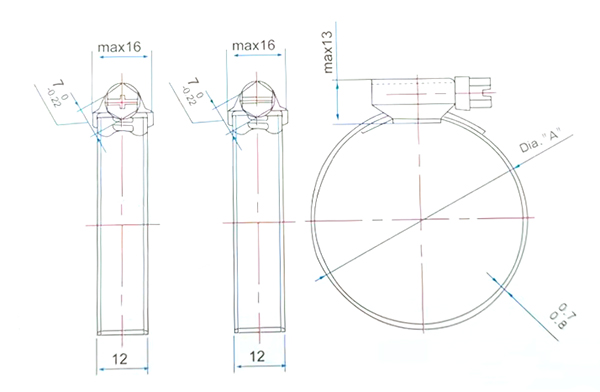

German Type Stainless Steel Hose Clamp Drawing

Material                                     W1                                    W2                         W3                        W4                               W5

band                                  zinc palted                           200 ss/300 ss               430               200 ss / 300 ss                        316

housing                            zinc palted                            200 ss/300 ss               430               200 ss / 300 ss                        316

screw                                zinc palted                             zinc palted                  410               200 ss / 300 ss                        316

                                         free torque                             breaking torque

12 mm / W1                      ≤0.6 NM                                   ≥ 5 NW

12 mm / W2                      ≤0.6 NM                                   ≥ 6.5 NW

12 mm / W4                      ≤0.6 NM                                   ≥ 6.5 NW

12 mm / W5                      ≤0.6 NM                                   ≥ 6.5 NW

Bandwidth: 12 mm

Size: 16 - 27 mm, 20 - 32 mm, 25 - 40 mm, 32 - 50 mm, 40 - 60 mm, 50 - 70 mm, 60 - 80 mm, 70 - 90 mm, 80 - 100 mm, 90 - 110 mm, 100 - 120 mm, 110 - 130 mm,                120 - 140 mm, 130 - 150 mm, 140 - 160 mm, 150 - 170 mm, 160 - 180 mm, 170 - 190 mm, 180 - 200 mm, (the size can made according to customization)

Pacakge: 100 pcs / 50 pcs / 10 pcs per bag + carton + pallet
